SPECTRORADIOMETER

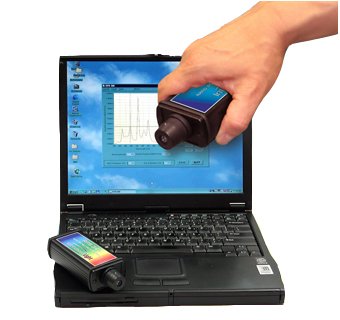

text "Portable Spectroradiometer"

ILT Spectroradiometer FamilyThe ILT spectroradiometer line has expanded in 2014 to include our new, cost-effective Mini Spectroradiometer series, the ILT550, and an improved high-end series in the ILT950 Spectroradiometer.

Both spectroradiometer systems run on the ILT SpectrILight III Version 5 which now includes metamerism calculations, 2 and 10 degree observer and the ability to overlay the current reading over a baseline reading for easy data comparisons.

ILT spectroradiometer kits include everything you will need for making the widest array of standard irradiance and color measurements straight out of the box including a NIST-traceable ISO17025 Accredited calibration.

These spectroradiometers easily and accurately measure spectral irradiance, CCT, CRI, color coordinates, MILSTD810 calculations, and more.







Typical Spectroradiometer Applications:

Plant Growth/PAR/Plant Photobiology

Characterization of Solar Simulation (ILT950 Only)

Characterization of UV Curing Systems

Photostability Testing

Accelerated Weathering

Radiometery and Photometry Measurements

LED Illumination and Color Analysis

Absorbance/Transmittance

Reflectance

Fluorescence







ILT 950 WIDEBAND SPECTRORADIOMETER



LED SPECTRORADIOMETER (ILT950-LED) - 디티엑스

The excellent performance of the ILT950 Spectroradiometer has been improved ever further with the addition of a new machined optical bench for reduced stray light, and improved thermal stability.

The new SONY CCD array is upgraded for improved performance including an increase from 2 to 4 photons/count and an increase of 100:1 in signal to noise over previous models. This combined with the new software features included in our powerful SpectrILight III, makes the ILT950 Spectroradiometer a top performer in the CCD array spectrometers available on the market.

ILT950UV Spectroradiometer - 200-450 nm (calibration options: single source 200-350 nm or dual cal 200-450 nm)

ILT950 Spectroradiometer - 200-1100 nm (calibration options: single source 350-1050 nm or dual cal 250-1050 nm)







ILT 550 WIDEBAND SPECTRORADIOMETER



가시광선 SPECTRORADIOMETER (ILT550) - 디티엑스

With budget conscious customers in mind, ILT is happy to announce the introduction of the new ILT550 Spectroradiometer. The ILT550 is nearly half the cost of the ILT950 Spectroradiometer, but is still packed with great features and options.

The ILT550 Spectroradiometer can be used with all the ILT950 accessories, including the R4 Right angle adapter, Mini and standard diffusers, Fiber optics, 2 and 5 inch integrating spheres. This combined with the new software features included in our powerful SpectrILight III makes the ILT550 Spectroradiometer and excellent low cost spectrometer option.

ILT550 Spectroradiometer - 250-900 nm (calibration options: single source 200-350 nm or 350-900 nm, dual cal 200-900 nm)

ILT550V Spectroradiometer - 360-850 nm (calibration: 360-850 nm)







ILT 900 WIDEBAND SPECTRORADIOMETER

Powerful, economical digital light meter easily and accurately measures spectral irradiance from the UV to the infrared (near),

lux, color, and more. Precision, portable USB powered spectrum measurement instrument.



Aimed at both the laboratory and industrial user, the ILT900 combines accuracy, ruggedness and complete user control in a package designed specifically for radiometric use. Measure wavelength, measure color, measure reflectance or transmittance this portable, digital light meter puts the power in your hand. Even the basic ILT900-R instrument includes everything needed for the widest range of standard measurements and has a large range  of specialized accessories to suit the most unusual requirements. Complete with input optics, software, cables, manuals and complete calibration, the ILT900 is ready to work right out of the box.

The most cost-effective, fully integrated CCD-based spectroradiometer family available.

see more details















Coming Soon!

RGS-2 UV-VIS-NIR Research Grade Scanning Spectroradiometer

A research grade spectroradiometer featuring 2 gratings for optimal coverage of the spectrum between 200 nm and 1100 nm. Features will include an integrated internal optical filter wheel, a 250 micron entrance slit and optional fiber optic input assemblies....see more details
