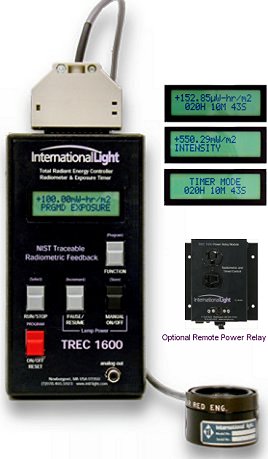

TREC 1600 RADIOMETER/PHOTOMETER





AND





Controls lamps and shutters for
programmed accumulated exposure

Fully functional
radiometer / photometer

Time-base lamp
exposure controller





  • Widest range of detectors UV-NIR
  • NIST traceable calibrations
  • Battery back-up exposure control
  • Portable radiometer







Phototherapy     Photostability     Photobiology     Photochemistry

UV Curing



The new TREC 1600 is the world's only radiometer than can actually control the precise exposure (dose) of irradiation in research, medical, and production applications. A full featured radiometer, in the tradition of the industry standard IL1400, it offers the widest dynamic range and sensitivity of any handheld radiometer. Coupled with International Light's extensive range of detectors and fore optics, it is adaptable to virtually any radiometric application.



The TREC 1600 uniquely offers direct control of lamps through its power relay or it can be easily integrated into a wide range of interfaces for both power and shutter control. With integration times extending to months, and and internal battery backup system, it is ideal for controlling photostability, solar simulation, and weathering experiments.

Visit our TREC 1600 product page for details as to sensitivities and integration periods for most applications, or call our technical support team for advice on your specific application.
