  내후성 시험기 (WEATHER/FADE METER)





  Home > Weather / Fade Testing System











XENON 촉진 내후성 / 내광성 시험기

XENON ACCELERATED WEATHERING TEST SYSTEM (DW-X6000)

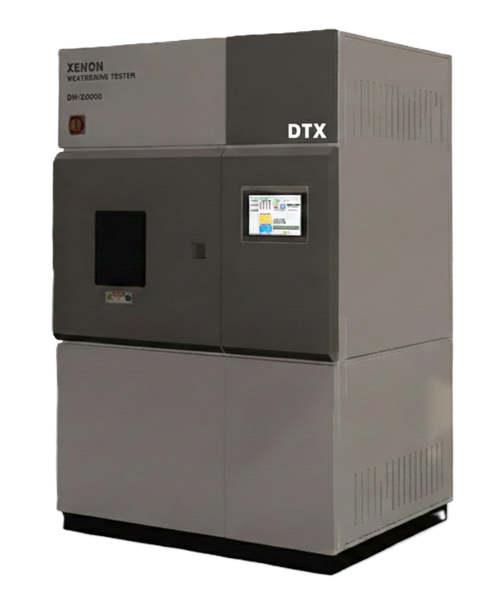

APPEARENCE





내후성시험기





SPECIFICATION

시스템 사이즈 (Dimensions)

1980 (H) X 1270 (W) X 1020 mm (D)

조사면적 (Total Exposure Area)

6500 cm2

결선방식 (Wiring Connections)

3 Phase, 3 Wire w/ Ground (3/PE)

사용전압

200-250 VAC

최대 사용전압 (Max. Current)

50 Amps

주파수 (Frequency)

50/60 Hz

최대 사용전력 (Max. Power)

4.5 kW / 6.5 kW

무게 (Weight)

600 kg

램프 (Lamp)

Xenon Arc Lamp

습도 (Humidification)

0.2 l/min

Specimen Spray

0.2 l/min

Rack Spray

0.2 l/min





 * Above data was made by light source's output value, and the value can be differ according to measurement distance, method, instrument's makers
