  내후성 시험기 (WEATHER/FADE METER)





  Home > Weather / Fade Testing System











UV 촉진내후성 / 내광성시험기

XUV ACCELERATED WEATHERING TEST SYSTEM (DW-U800-ST)

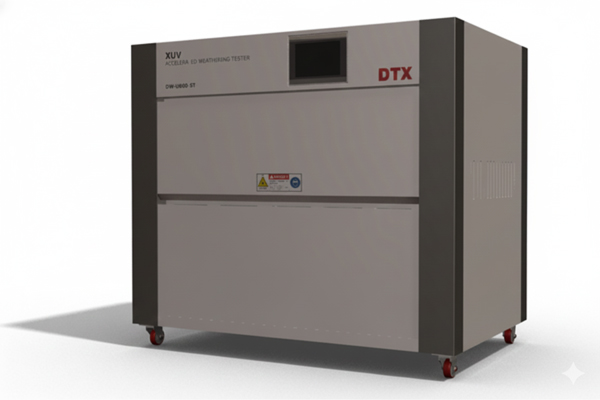

APPEARENCE





UV촉진 내후성 시험기





SPECIFICATION

시스템 사이즈 (Dimensions)

1400 (H) X 1500 (W) X 600 mm (D)

샘플수량 (Specimens)

40 Ea (90 x 170 mm)

램프 (Lamp)

UVA Lamp - 8 Ea

조도 제어 (Irradiance Control)

340 nm, 351 nm, 313 nm (Selectable)

챔버온도제어 (Chamber Temperature Control)

40 ~ 80 C

Humidity Control

Automatic

BPT 온도제어 범위 (Black Panel Temperature)

40 ~ 80 C

Blower Control

Automatic

워터 사용량 (Water Consumption)

9 liter / Day

스프레이 (Water Spray)

Optional

Water Pressure

0.2 ~ 5 bar

시스템 컨트롤러 (System Controller)

Programable Logic Controller

컨트롤 패널 (HMI)

Touch Screen

교정기기 (Calibration Instrument)

ILT1400, Broadband 300 ~ 400 nm Irradiance and Temperature (Optional)

습도 (Humidification)

0.2 l/min

결선방식 (Wiring Connections)

1 Phase, 3 Wire w/ Ground (3/PE)

사용전압

200-250 VAC

최대 사용전압 (Max. Current)

10 Amps

주파수 (Frequency)

50/60 Hz

최대 사용전력 (Max. Power)

2.2 kW

무게 (Weight)

150 kg





 * Above specificaton can be changed without notice for performance improvment.













UV 촉진내후성 / 내광성시험기

XUV ACCELERATED WEATHERING TEST SYSTEM (DW-U800-DT)

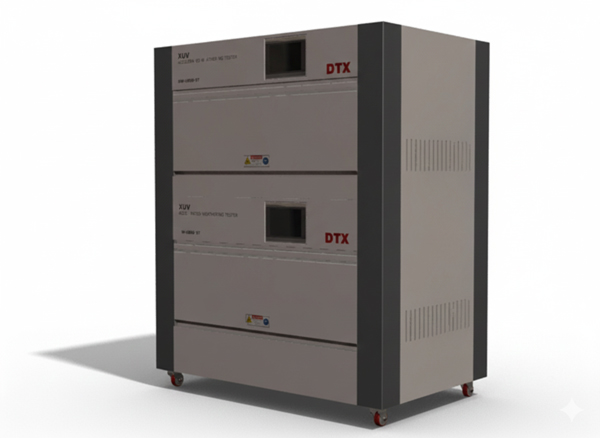

APPEARENCE





UV촉진 내후성 시험기





SPECIFICATION

시스템 사이즈 (Dimensions)

1850 (H) X 1500 (W) X 600 mm (D)

샘플수량 (Specimens)

80 Ea (90 x 170 mm)

램프 (Lamp)

UVA Lamp - 16 Ea

조도 제어 (Irradiance Control)

340 nm, 351 nm, 313 nm (Selectable)

챔버온도제어 (Chamber Temperature Control)

40 ~ 80 C

Humidity Control

Automatic

BPT 온도제어 범위 (Black Panel Temperature)

40 ~ 80 C

Blower Control

Automatic

워터 사용량 (Water Consumption)

18 liter / Day

스프레이 (Water Spray)

Optional

Water Pressure

0.2 ~ 5 bar

시스템 컨트롤러 (System Controller)

Programable Logic Controller

컨트롤 패널 (HMI)

Touch Screen

교정기기 (Calibration Instrument)

ILT1400, Broadband 300 ~ 400 nm Irradiance and Temperature (Optional)

습도 (Humidification)

0.2 l/min

결선방식 (Wiring Connections)

1 Phase, 3 Wire w/ Ground (3/PE)

사용전압

200-250 VAC

최대 사용전압 (Max. Current)

20 Amps

주파수 (Frequency)

50/60 Hz

최대 사용전력 (Max. Power)

4.4 kW

무게 (Weight)

250 kg





 * Above specificaton can be changed without notice for performance improvment.
