  내후성 시험기 (WEATHER/FADE METER)





  Home > Weather / Fade Testing System













내광성 시험기

LIGHT RESISTANCE/FASTNESS SOLAR TEST SYSTEM (DMH-1208M)





APPEARENCE





Solar Simulator             Solar Simulator





SPECIFICATION

시스템 사이즈 (Dimensions)

2,475 (H) x  1,600 (W) x  1,600 (D) mm

조사면적 (Total Exposure Area)

20,000 cm2

결선방식 (Wiring Connections)

1 Phase, 3 Wire w/ Ground (3/PE)

사용전압

200-250 VAC

최대 사용전압 (Max. Current)

50 Amps

주파수 (Frequency)

50/60 Hz

최대 사용전력 (Max. Power)

12 kW

무게 (Weight)

400 kg

램프 (Lamp)

Metal Halide Lamp / Xenon Arc Lamp

습도 (Humidification)

95% ~ 20%





 * Above specificaton can be changed without notice for performance improvment.











내광성 시험기

LIGHT RESISTANCE/FASTNESS SOLAR TEST SYSTEM (DMH-1216)





APPEARENCE

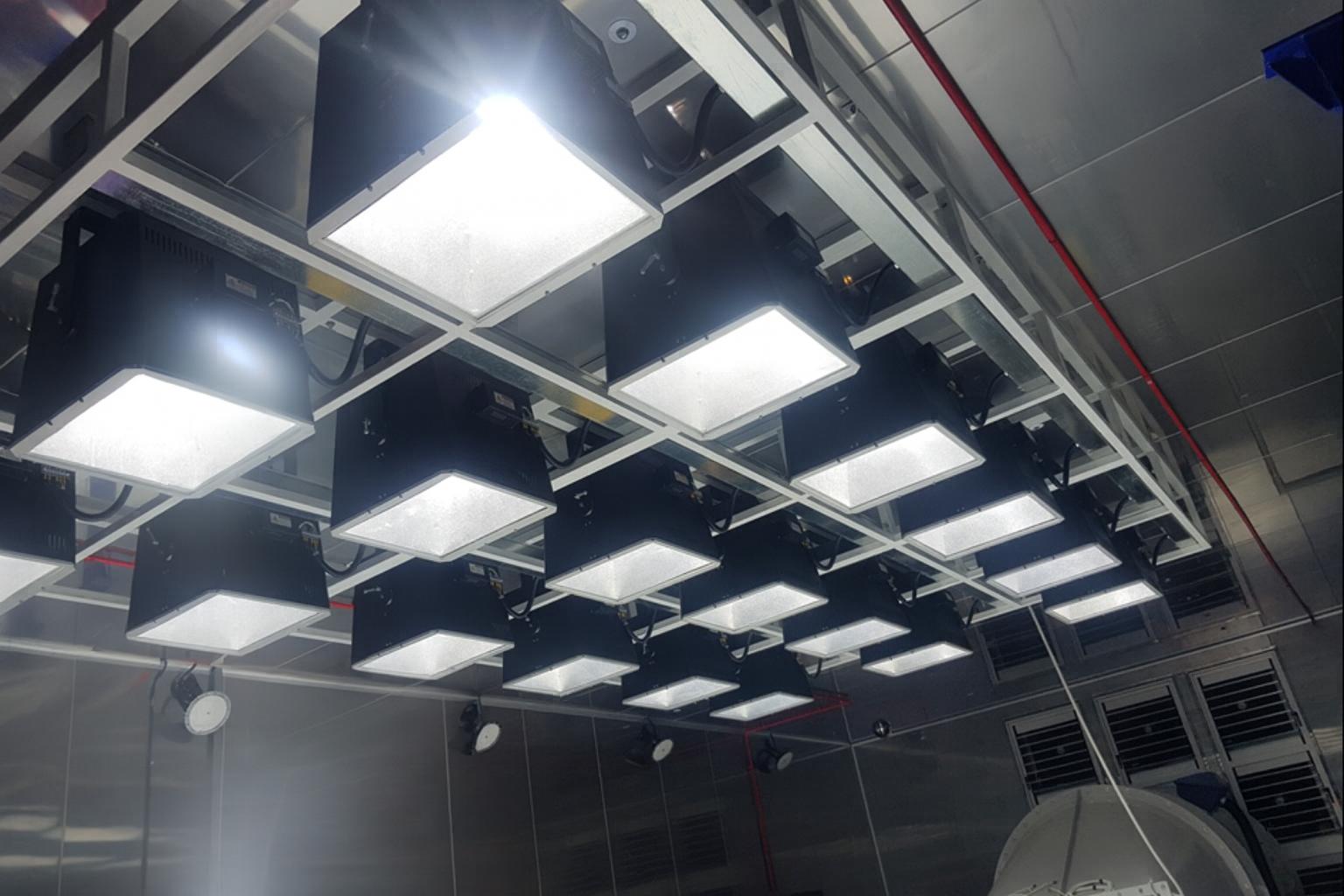

자동차내광성시험





SPECIFICATION

시스템 사이즈 (Dimensions)

2,475 (H) x  1,600 (W) x  1,600 (D) mm

조사면적 (Total Exposure Area)

40,000 cm2

결선방식 (Wiring Connections)

1 Phase, 3 Wire w/ Ground (3/PE)

사용전압

200-250 VAC

최대 사용전압 (Max. Current)

100 Amps

주파수 (Frequency)

50/60 Hz

최대 사용전력 (Max. Power)

24 kW

무게 (Weight)

700 kg

램프 (Lamp)

Metal Halide Lamp / Xenon Arc Lamp

습도 (Humidification)

95% ~ 20%





 * Above data was made by light source's output value, and the value can be differ according to measurement distance, method, instrument's makers
