  내후성 시험기 (WEATHER/FADE METER)





  Home > Weather / Fade Testing System











XENON 촉진 내후성 / 내광성 시험기

X-SOL ACCELERLATED WEATHER / FADE TESTING SYSTEM (DW-F6000)

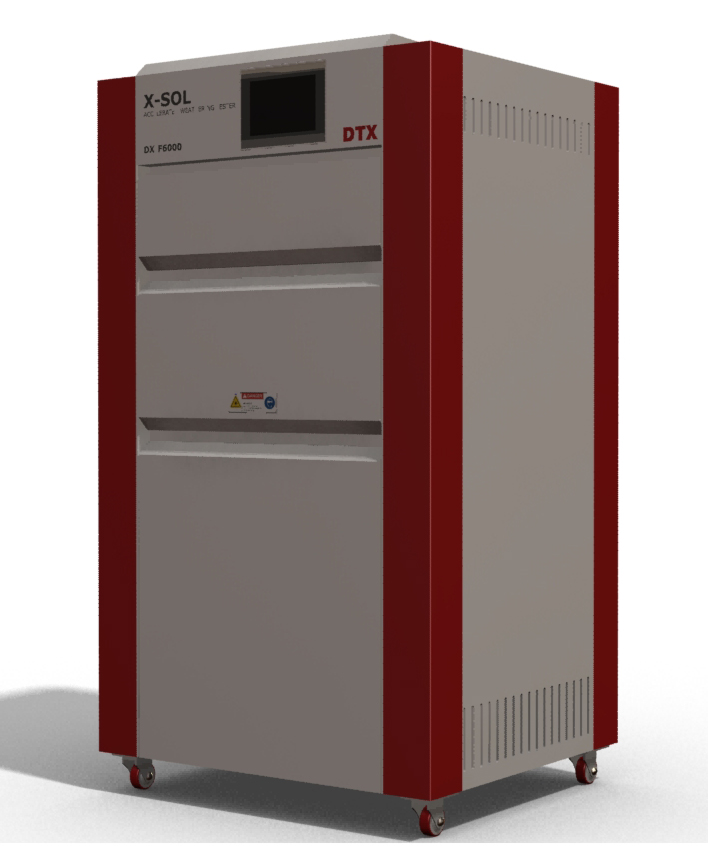

APPEARENCE

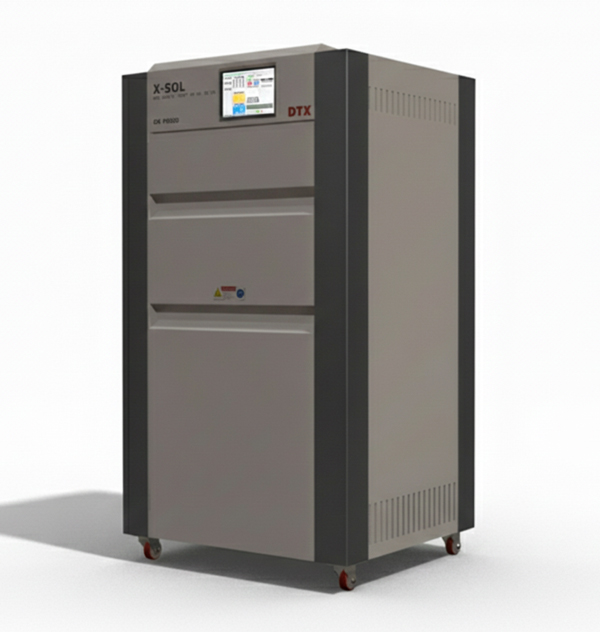

내후성시험기





SPECIFICATION

시스템 사이즈 (Dimensions)

1980 (H) X 1100 (W) X 1020 mm (D)

광조사면적 (Total Exposure Area)

3500 cm2

샘플수량 (Specimens)

60 Ea

램프 (Lamp)

Xenon Arc Lamp - 1500W x 4 Ea

조도 제어 (Irradiance Control)

300 - 400 nm, 340 nm, 420 nm

조도 범위 (Irrad. Range)

Wavelength

Day Light Filter

Window Glass Filter



300 - 400 nm

45 ~ 75 W/m2

35 ~ 75 W/m2



340 nm

0.3 ~ 7.3 W/m2

0.2 ~ 7.0 W/m2



420 nm

0.7 ~ 1.8 W/m2

0.6 ~ 1.6 W/m2

챔버온도제어 (Chamber Temperature Control)

up to 70 C (Automatic)

BST and Humidity Control

Automatic

BST 온도제어 범위 (Black Standard Temperature)

45 ~ 100 C

BPT 온도제어 범위 (Black Panel Temperature)

45 ~ 100 C

Blower Control

Automatic

초음파 습도 조절 (Ultrasonic Humidity Control)

Automatic

워터칠러 용량 (Water Chiller Capacity)

70 liter

스프레이 (Spray)

Single / Twin / Dual (개별 공급시) : Optional

Specimen Spray

0.2 l/min

Rack Spray

0.2 l/min

시스템 컨트롤러 (System Controller)

Programable Logic Controller

컨트롤 패널 (HMI)

Touch Screen

교정기기 (Calibration Instrument)

ILT1400, Broadband 300 ~ 400 nm Irradiance and Temperature (Optional)

습도 (Humidification)

0.2 l/min

결선방식 (Wiring Connections)

3 Phase, 3 Wire w/ Ground (3/PE)

사용전압

200-250 VAC

최대 사용전압 (Max. Current)

50 Amps

주파수 (Frequency)

50/60 Hz

최대 사용전력 (Max. Power)

5 kW

무게 (Weight)

600 kg





 * Above specificaton can be changed without notice for performance improvment.
