  펄스UV살균 시스템 (PUV STERILIZATIONN)





  Home > Pulse UV > Pulse UV Sterilization (펄스UV살균)











펄스UV 살균시스템 (PULSE UV STERILIZATION)



SteriPulse-XL Systems





RS-3000C - Bench-top for R&D or Production Batch Processing



Model RS-3000C is a complete benchtop sterilization system with controller and separate Sterilization Chamber containing a 16" Lamp Housing and lamp. The controller provides all power to the Lamp Housing as well as complete operator control of the sterilization process using front-panel controls. Safety interlocks are provided to protect the user from exposure from the pulsed UV lamp when the chamber door is open.

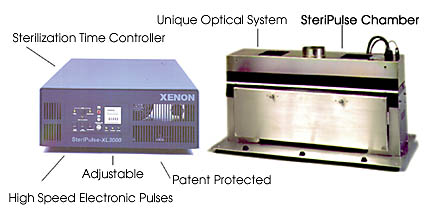

RS-3000C Bench-top System





The SteriPulse-XL Sterilization Chamber, with removable Lamp Housing, is detached from the Controller. Ozone is evacuated to ensure EPA ozone level compliance in the workplace. Forced air evacuation is in the range of 1-4 volumes per minute to ensure no heat buildup within the chamber during sterilization. The Chamber does not evacuate air borne pathogens nor introduce air borne pathogens into the Chamber while the system is in the ON cycle. The Chamber has an interlocking door for lockout during the sterilization ON cycle. The door interlock switch is connected with the safety interlock switches in the Controller. The Chamber and insert are made of stainless steel construction for ease of sterilization and disinfection.









RS-3000B - Continuous Manufacturing with Operator Controls



Model RS-3000B is a basic sterilization system offering a controller and a standalone 16" (40.6 cm) Lamp Housing with lamp. The Controller provides all power to the Lamp Housing as well as complete operator control of the sterilization process using front-panel controls. The elliptical reflector provides high peak UV for deep penetration and high speed processing, as well as maximum energy for dose-dependent sterilization and for timed start-stop-start processing.

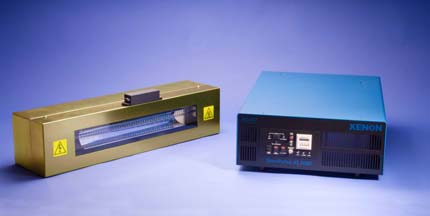

RS-3000B Continuous Manufacturing System with Operator Control









RS-3000M - Continuous Manufacturing with PLC Control



Model RS-3000M is a modular system designed for ease of integration into large scale sterilization systems. Units include a Controller, High Voltage Power Supply Module, and a standalone Lamp Housing with lamp. System control is via remote Programmable Control Logic (IPLC). To accommodate larger inline processing requirements, additional controllers and lamp housings can be placed end-to-end to effectively increase the linear exposure length in multiples of 16-inches (40.6 cm). The elliptical reflector provides high peak UV for deep penetration and high speed processing, as well as maximum energy for dose-dependent sterilization and for timed start-stop-start processing

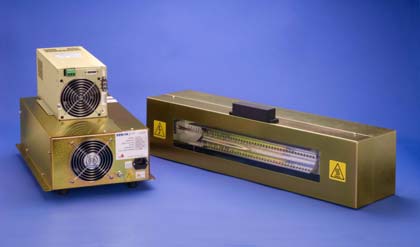

RS-3000M Continuous Manufacturing System with PLC Control









LM-1000 - Light Monitor



A useful accessory item that can be supplied with the SteriPulse-XL® systems is the LiteMark Light Monitor. The LiteMark Monitoring System is a photo-electric detector module which is factory supplied mounted on a Lamp Housing (shown on 16" Lamp Housing below) or Sterilization Chamber to enable the operator to monitor, on a real-time basis, the performance of a lamp system during its operating life. Such a capability allows the lamp to be changed before the output falls below a predetermined safe minimum. It does this by sensing the light intensity from each flash which is scattered sideways in the Lamp Housing window and relating it to the side-scattered intensity produced by the same lamp when new.

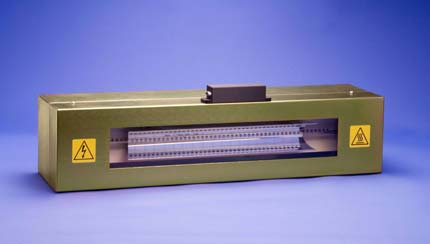

LiteMark-XL 1000 Light Monitor
